The three types of TriGuiding Catheters
Diagram comparing three black-and-blue curved tube designs: a smaller hooked tube on the left, a taller U-shaped tube in the center labeled TGC-45065-Sim1 and TGC-58065-Sim1, and a large sweeping curved tube on the right labeled TGC-48065-Cobra and TGC-58065-Cobra.

TriGuide® Guiding Catheter

Available in Axis, Sim1 and Cobra shapes, the TriGuide is the only large diameter* guiding catheter on the market with a lubricious inner lining and a reverse curve shape.

The TriGuide Guiding Catheter is designed to accommodate the TriNav® LV, TriNav XP and TriNav Advance Infusion Systems. Available in 5 Fr and 6 Fr sizes, it is a single-lumen, braided catheter with a soft distal tip.

*≥0.048” Inner Diameter.

Talk to a Representative
Explore Resources

TriGuide Guiding Catheter specifications

Download
Product Code
Axis
TGC-48065-Axis
TGC-58065-Axis
Sim1
TGC-48065-Sim1
TGC-58065-Sim1
Cobra
TGC-48056-Cobra
TGC-58065-Cobra
Outer Diameter
5F
6F
5F
6F
5F
6F
Inner Diameter
0.048 in
0.058 in
0.048 in
0.058 in
0.048 in
0.058 in
Length
65 cm
65 cm
65 cm

Learn what makes the TriGuide Guiding Catheter unique

The TriGuide® Guiding Catheter is designed to accommodate the TriNav® LV, TriNav XP and TriNav Advance Infusion Systems.

TriGuide is available in Axis, Sim1 and Cobra shapes.

Available in 5 Fr and 6 Fr sizes, TriGuide is a single-lumen, braided catheter with a soft distal tip. The inner diameter is 0.048” or 0.058”, with a length of 65 cm.

Five catheter-like medical devices shown side by side, each with an expandable wire-mesh basket or filter near the tip and gold-colored marker bands.

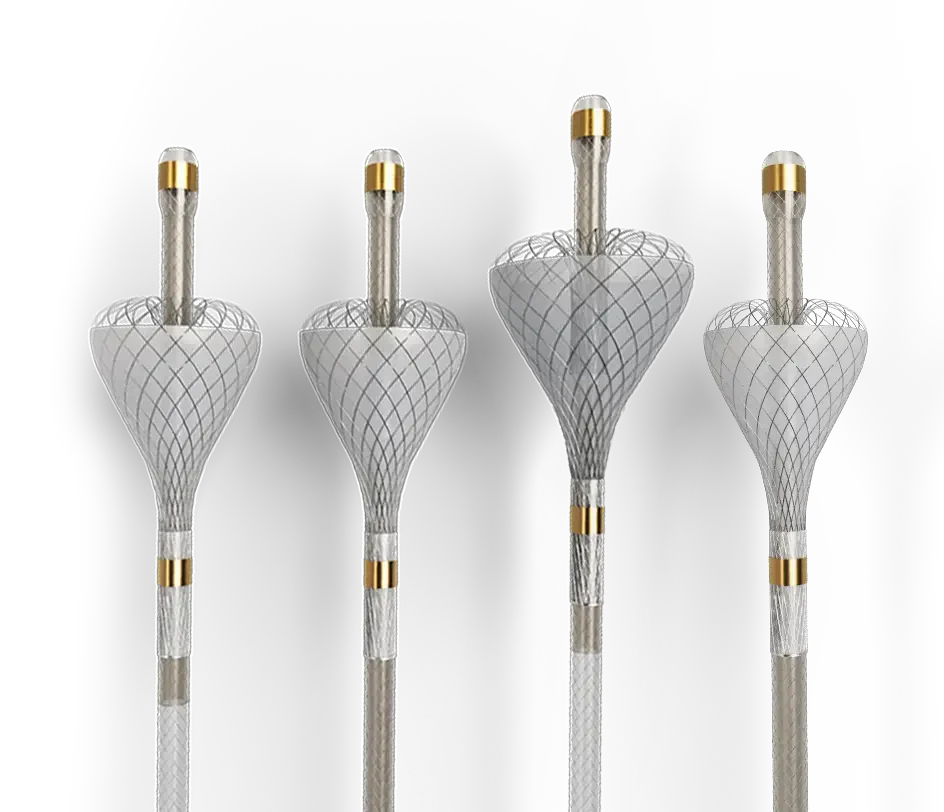

Trinav infusion systems

More therapy where it’s needed. Less where it’s not.

The TriNav® Infusion System with SmartValve® technology leverages Pressure-Enabled Drug Delivery™ (PEDD™), which may help atraumatically open collapsed vessels and may help deliver more therapy where you need it, and less where you don’t.1-3

Learn More About TriNav Infusion Systems

Learn more about our portfolio of tools.

Learn More

Important Safety Instructions

Indications For Use


The TriGuide Guiding Catheter is intended to provide a pathway through which therapeutic devices are introduced. The TriGuide Guiding Catheter is intended to be used in the peripheral vascular system.

Contraindications

The TriGuide Guiding Catheter is not intended for use in vasculature of the central nervous system (including the neurovasculature) and central circulatory system (including the coronary vasculature).

Rx Only

For the safe and proper use of the TriGuide device, refer to the Instructions for Use.
